Retaining Walls

Earth Wall Design Use of HDPE Geocell

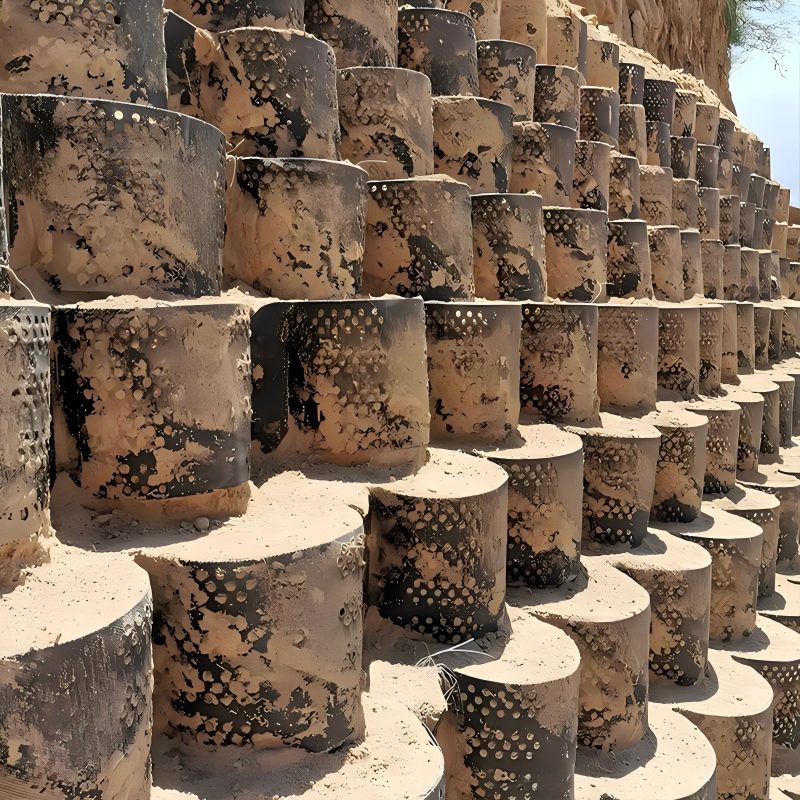

HDPE Geocell Earth Retaining Wall System forms layered retaining structures. Expanded courses are charged with compactable backfill and compacted so the enclosed mass works as a locked earth block. This suits grade separation where a broad natural batter would use too much land.

The structure may work as a mass wall or combine with tensile reinforcement behind the facing. Front pockets can receive planting soil, angular stone, or architectural medium for utility corridors, roadside cuts, terraces, and boundary changes.

Folded modules bring more wall area per truck than many precast options. Work advances lift by lift: open the course, align it, place backfill, compact, and continue upward. This helps where cranes, wet concrete, or long curing periods are difficult.

Key order notes include wall elevation, bench breadth, foundation bearing, backfill, face angle, water-relief outlet, surcharge, and nearby earthwork connection. CHANGFENG can adjust strip gauge, pocket depth, seam pitch, course breadth, facing color, and bundle marks.

Product Parameter Table

Product Features and Benefits

1. Layered Earth Retention

The expanded geocell layers confine compacted fill and help form a stable wall body for steep slopes, terraces, and limited-space projects.

2. Flexible Wall Facing Options

Front cells can be filled with topsoil, gravel, or selected stone, allowing the wall to support green fascia or a cleaner mineral appearance.

3. Efficient Site Logistics

Folded panels reduce transport volume and are easier to move on hillside sites where access for heavy wall blocks may be limited.

4. Project-Based Geometry

Cell height, weld spacing, layer width, panel size, and package marks can be adjusted for different wall layouts.

5. Drainage-Friendly Structure

Granular infill and planned drainage measures can help reduce water pressure behind the wall when designed correctly.

6. OEM/ODM Project Supply

CHANGFENG supports contractor orders, custom packing, export documents, and staged delivery for retaining wall projects.

7. Project Supply Support

Cell geometry, panel size, color, package marks, loading documents, and OEM/ODM service can be arranged according to project procurement needs.

Application Scenarios

1. Road Cut Retaining Walls

Road cut sections often need a narrow retaining solution where a natural slope cannot remain stable. Stacked geocell courses can form a compact reinforced soil wall beside roads, reducing the need for large concrete works while allowing a controlled face treatment.

2. Terraced Landscape and Site Expansion

For projects that need to turn a steep grade into usable space, geocell retaining courses can form stepped earth structures with less visual heaviness than a solid concrete wall. The exposed pockets can hold planting soil or stone, helping the wall face blend with nearby landscape areas while keeping the retained fill organized.

3. Embankment Toe Support

Where an embankment needs additional toe support, geocell courses can provide a confined soil mass at the base. This is useful near roads, rail corridors, water-relief areas, and grade transitions that require better edge stability.

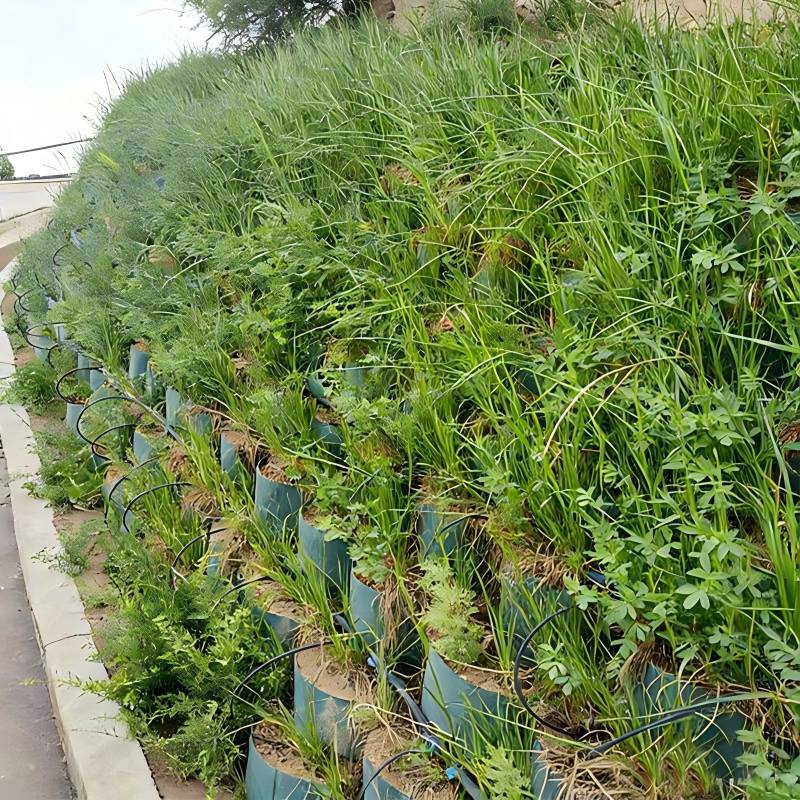

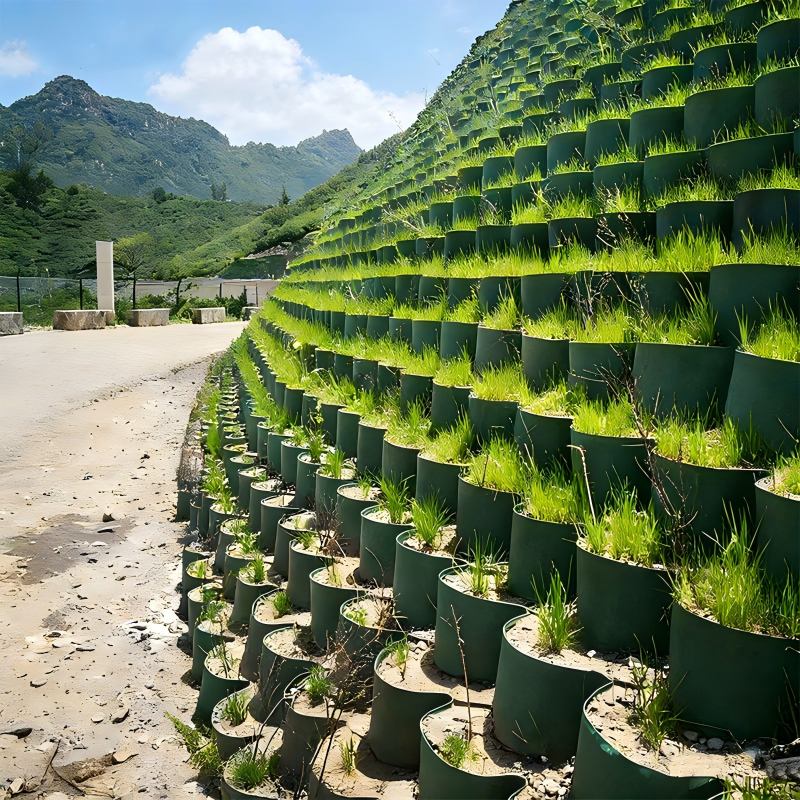

4. Green Fascia Wall Construction

For contracts that want a more natural surface, the exposed pockets can hold planting soil and help vegetation grow on the face. The wall still needs proper water-relief and compaction, but the finished surface can blend better with the surrounding slope.

5. Slope Rehabilitation and Repair

A geocell retaining structure can be used in slope repair work where sliding soil, shallow failures, or limited working space make simple regrading difficult. The system can be planned with water-relief, anchors, or geogrid courses according to the engineering layout.

Quality Control

For retaining wall supply, CHANGFENG checks strip appearance, seam integrity, opening dimension, course breadth, and bundle identification. Each course should unfold cleanly and keep a repeatable face line during backfilling.

CHANGFENG checks retaining wall geocell modules with focus on strip strength, weld quality, module opening shape, dimensional tolerance, and surface appearance. For wall applications, consistent pocket geometry is important because each course must expand evenly, receive backfill smoothly, and keep the planned wall face line during installation.

Orders can be separated by wall zone, lift breadth, face treatment, or installation stage. Batch codes, bundle photos, label images, container records, and bundling lists can be supplied when required.

Before production, buyers can confirm the wall elevation range, course breadth, pocket elevation, weld spacing, facing medium, and bundling marks. For large retaining structures, batch records, bundle labels, container photos, and contract papers can be prepared to help the installer separate wall courses and check shipment quantities at the site.

Packing and Delivery

Modules are compressed into lift-friendly bundles for benches, slopes, and narrow entrances. Labels can show course breadth, pocket depth, bundle count, batch code, and wall area.

Retaining wall geocell modules are folded and bundled so each bundle is easier to move along narrow access roads or hillside work areas. Packages can be marked by course size, module quantity, batch number, and contract zone. For staged wall construction, CHANGFENG can arrange shipment groups to match the installer schedule and reduce sorting time before installation.

FAQ

Q1: What type of wall can be made with this geocell?

A: It can form compact reinforced soil walls, terrace walls, green-faced structures, and support blocks at embankment toes. Geometry must follow engineering layout.

Q2: Does the wall always need geogrid reinforcement?

A: Not always. Small mass walls may rely mainly on the enclosed earth block. Taller structures, weak foundations, or heavy surcharge may need reinforcement behind the face.

Q3: What can be placed in the exposed front pockets?

A: Front pockets may hold planting soil, decorative stone, crushed stone, or specified facing medium. The choice depends on appearance, water relief, and maintenance.

Q4: Why is water-relief important for this wall system?

A: Water behind a wall can increase pressure. Free-draining backfill, outlets, or filter courses should be included when the layout requires them.

Q5: What factors affect size?

A: Wall elevation, face angle, backfill type, foundation condition, surcharge, and construction method affect pocket depth, seam pitch, and course breadth.

Q6: What should be prepared before asking for price?

A: Please send wall length, wall elevation, face angle, course breadth, backfill data, facing choice, estimated quantity, shipment port, and paper needs.

Q7: How is the wall built on site?

A: The crew prepares the foundation, opens the first course, places and compacts backfill, checks the face line, and repeats the process upward.
