CHANGFENG Gabion Retaining Wall for Residential Protection

PROJECT OVERVIEW

Location: Guadalajara, Mexico

Application: Slope Stabilization & Residential Retaining Wall

Product: CHANGFENG Gabion Baskets

Scope: 3,500 m³ of gravity retaining wall structure

1.THE CHALLENGE

There were serious geological concerns associated with a new residential development on a steep hillside:

Soil instability: During the intense rainy season, there is a high risk of landslides.

Structural Risk: The foundation of houses constructed on the upper slope must be supported by a strong retaining wall.

Drainage Problems: Hydrostatic pressure would be trapped by typical concrete walls, potentially causing wall failure.

2.THE CHANGFENG SOLUTION

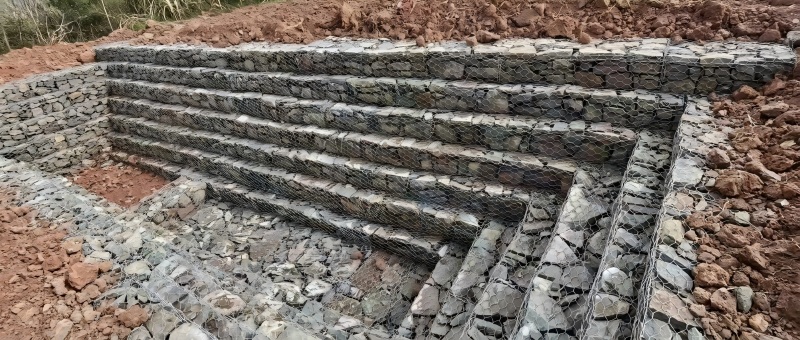

A mass gravity retaining wall system using CHANGFENG Gabion Baskets was implemented to provide both structural support and natural drainage:

Flexible Structure: The double-twisted mesh allows the wall to withstand differential settlement without cracking.

Permeability: The stone-filled baskets provide natural drainage, eliminating hydrostatic pressure behind the wall.

Durability: Galvanized and PVC-coated wire ensured long-term resistance to corrosion in the local soil.

3.KEY BENEFITS

Cost-Efficiency: Utilized local stones for filling, significantly reducing material and transportation costs.

Environmental Integration: The permeable structure allows for natural vegetation growth, blending the wall into the landscape.

Rapid Installation: Modular baskets were assembled on-site with minimal specialized equipment required.

4.THE OUTCOME

The completed structure has successfully protected the residential site through multiple rainy seasons:

Structural Integrity: Zero movement or deformation recorded in the homes above the wall.

Effective Drainage: The wall acts as a natural filter, managing runoff safely.

Aesthetic Appeal: The stone finish provides a professional, “industrial-natural” look that adds value to the property.

PRODUCTS USED

CHANGFENG Gabion Baskets

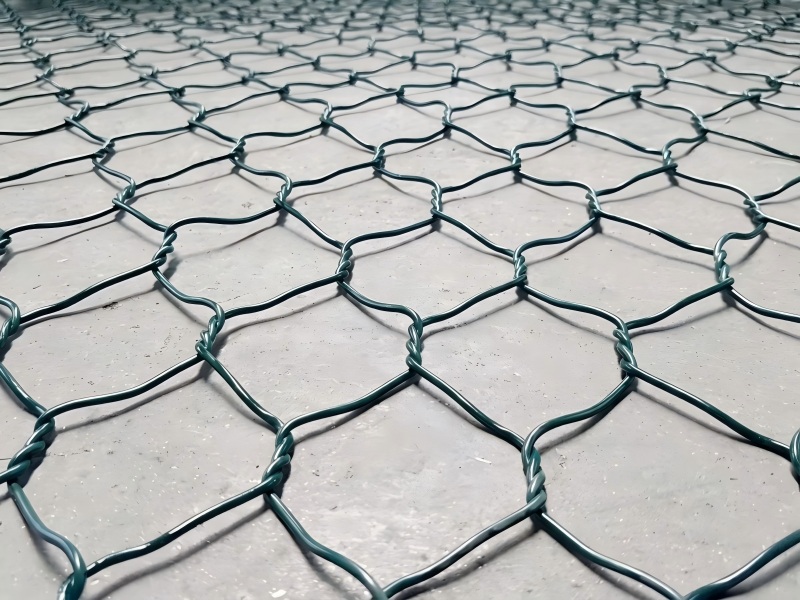

Double-Twisted Mesh:Prevents unravelling even if a wire is cut, ensuring maximum structural safety.

Galfan/PVC Coating: Superior corrosion resistance for service life exceeding 50 years.

Internal Diaphragms: Vertically reinforced every 1 meter to prevent stone migration and maintain wall shape.

High Tensile Strength: Wire quality meets international ASTM/EN standards for heavy-duty gravity structures.
